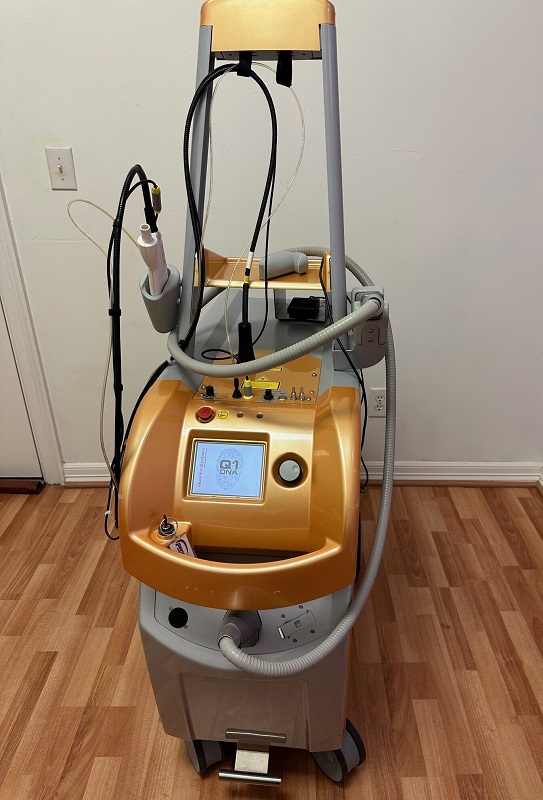

Quanta Systems Ultrawave II

The Quanta Systems Ultrawave II is a versatile, multi-wavelength aesthetic laser platform designed for a broad range of dermatological and cosmetic procedures. Combining Alexandrite, Nd:YAG, and optional IPL technologies, it offers flexibility for treating various skin types and conditions.

Key Features & Specifications

Wavelengths & Modalities:

• 755 nm Alexandrite: Ideal for hair removal and pigmented lesion treatments.

• 1064 nm Nd:YAG: Available in both long and short pulses, suitable for vascular lesions and deeper skin treatments.

• 1320 nm Nd:YAG (Optional): Targets fine lines and wrinkles.

• IPL (Optional): Comes with filters at 400, 550, 570, 590, 625, and 650 nm for various applications, including acne treatment and skin rejuvenation.

Performance Parameters:

• 755 nm Alexandrite:

  • Pulse Width: 2–100 ms

  • Repetition Rate: up to 2 Hz

  • Spot Size: up to 16 mm

  • Max Fluence: up to 25 J/cm² @ 14 mm

• 1064 nm Nd:YAG Long Pulse:

  • Pulse Width: 3–300 ms

  • Repetition Rate: up to 2 Hz

  • Spot Size: up to 12 mm

  • Max Fluence: up to 480 J/cm² @ 4 mm

• 1064 nm Nd:YAG Short Pulse:

  • Pulse Width: 0.3–0.8 ms

  • Repetition Rate: up to 7 Hz

  • Spot Size: up to 8 mm

  • Max Fluence: up to 25 J/cm² @ 5 mm

• 1320 nm Nd:YAG (Optional):

  • Pulse Width: 5–10 ms

  • Repetition Rate: up to 5 Hz

  • Spot Size: up to 8 mm

  • Fluence: up to 35 J/cm² @ 6 mm

• IPL (Optional):

  • Pulse Width: 5–240 ms

  • Spot Size: 25×13 mm² to 48×13 mm²

  • Max Fluence: up to 30 J/cm²

  • Repetition Rate: up to 0.5 Hz

System Details:

• Integrated Skin Cooler: Optional feature for enhanced patient comfort.

• Electrical Requirements: 220–230 V AC; 16 A; 50–60 Hz

• Dimensions: 900 mm (W) x 480 mm (L) x 930 mm (H)

• Weight: Approximately 85–90 kg

Clinical Applications

The Ultrawave II is indicated for a variety of treatments, including:

• Hair Removal: Effective on all skin types (Fitzpatrick I–VI), including tanned skin.

• Vascular Lesions: Treatment of conditions like port wine stains, hemangiomas, telangiectasia, rosacea, and leg veins.

• Pigmented Lesions: Addresses age spots, sun spots, café-au-lait macules, seborrheic keratoses, nevi, chloasma, and tattoos (notably blue and black inks).

• Skin Rejuvenation: Improves skin texture and tone.

• Acne Scars and Wrinkles: Reduces the appearance of acne scars and fine lines.

• Pseudofolliculitis Barbae (PFB): Treats razor bumps effectively.

• Hypertrophic and Keloid Scars: Reduces red pigmentation where vascularity is a component.

Notable Features

• Multi-Wavelength Capability: Allows for tailored treatments across various skin conditions.

• Adjustable Spot Sizes: Facilitates precision in targeting specific areas.

• Upgradeable System: Optional additions like the 1320 nm Nd:YAG and IPL modules enhance versatility.

• User-Friendly Interface: Designed for ease of use in clinical settings.

The Quanta Systems Ultrawave II stands out as a comprehensive solution for practitioners seeking a reliable and adaptable laser system for aesthetic and dermatological treatments. Its combination of multiple wavelengths and optional features makes it suitable for a wide range of clinical applications.
