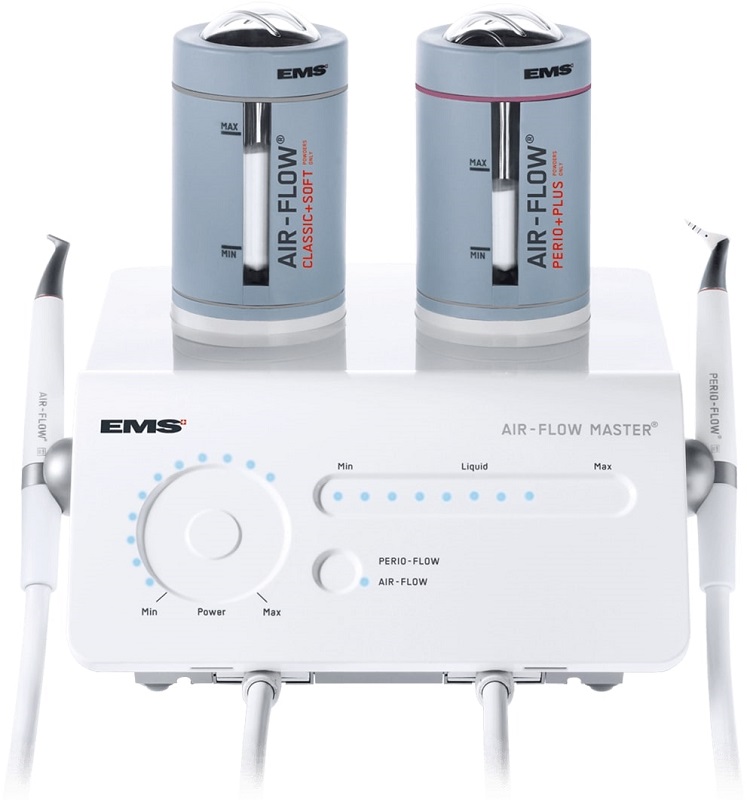

Air Flow Master

The EMS AIR-FLOW Master Piezon is an advanced dental prophylaxis system that integrates three core technologies—AIR-FLOW, PERIO-FLOW, and Piezon—into a single, versatile unit. Designed for comprehensive biofilm management, this device enables dental professionals to perform both supragingival and subgingival treatments efficiently, enhancing patient comfort and clinical outcomes.

Key Features

• Triple Modality Integration: Combines AIR-FLOW for supragingival air polishing, PERIO-FLOW for subgingival biofilm removal, and Piezon ultrasonic scaling in one device, facilitating a complete prophylaxis treatment.

• NO PAIN Technology: Features dynamic power response that adapts to the applied force, ensuring gentle yet effective scaling with minimal patient discomfort.

• Ergonomic Design: Equipped with intuitive touch panel controls for easy adjustment of power and water settings, along with ergonomic handpieces that enhance clinician comfort and precision during procedures.

• Efficient Workflow: Allows for quick switching between AIR-FLOW and PERIO-FLOW handpieces and powder chambers, streamlining the treatment process without the need for device purging.

• Integrated Heating System: Offers adjustable water temperature settings to provide warm and comfortable treatments, catering to patients with sensitivity concerns.

Included Components

• 1 x Base Unit

• 1 x Piezon Handpiece with LED Light

• 1 x AIR-FLOW Handpiece

• 1 x PERIO-FLOW Handpiece

• 2 x Handpiece Cords

• 2 x Magnetic Handpiece Holders

• 1 x 350ml Water Bottle

• 1 x AIR-FLOW Powder Chamber

• 1 x PERIO-FLOW Powder Chamber

• 1 x Box of 40 PERIO-FLOW Slim Nozzles

• 1 x “4-Step” Foot Pedal

• 1 x AIR-FLOW Classic Powder Bottle

Technical Specifications

• Dimensions (H x W x D): 225 x 280 x 295 mm

• Weight: Approximately 4.5 kg

• Power Supply: 100–240 VAC, 50–60 Hz

• Power Consumption: Max. 110 VA

• Ultrasound Specifications:

  • Frequency Range: 24–32 kHz

  • Max Output Power: 12 W

• Water Supply Pressure: 1 to 5 Bar (100 to 500 kPa)

• Compressed Air Supply Pressure: 5.5 to 7.5 Bar (550 to 750 kPa)

• Operating Conditions: +10 °C to +40 °C; 30% to 75% relative humidity

• Storage and Transport Conditions: -10 °C to +40 °C; 10% to 95% relative humidity; 500 hPa to 1060 hPa air pressure
