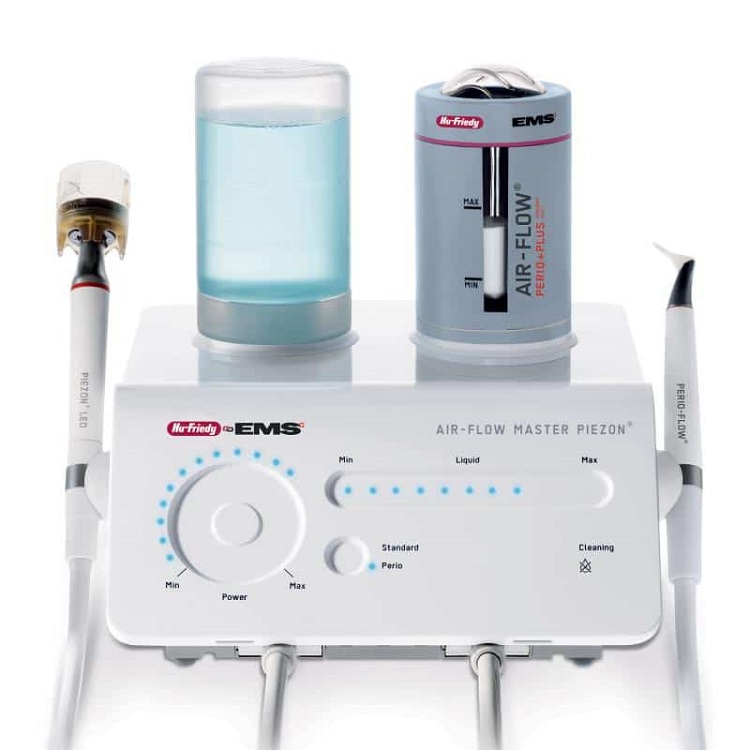

Air Flow Master Piezon

The EMS AIR-FLOW Master Piezon is a state-of-the-art dental prophylaxis system that seamlessly integrates three advanced technologies—AIR-FLOW, PERIO-FLOW, and Piezon—to deliver comprehensive and efficient treatments for both supragingival and subgingival applications. Designed with precision and patient comfort in mind, this Swiss-made device supports the full Guided Biofilm Therapy (GBT) protocol, making it an indispensable tool for modern dental practices.

Key Features

• Triple Modality Integration: Combines AIR-FLOW for supragingival air polishing, PERIO-FLOW for subgingival biofilm removal, and Piezon ultrasonic scaling in a single unit, facilitating a complete prophylaxis treatment.

• NO PAIN Technology: Incorporates dynamic power response that adapts to the applied force, ensuring gentle yet effective scaling with minimal patient discomfort.

• Ergonomic Design: Features an intuitive touch panel for easy adjustment of power and water settings, along with ergonomic handpieces that enhance clinician comfort and precision during procedures.

• Efficient Workflow: Allows for quick switching between AIR-FLOW and PERIO-FLOW handpieces and powder chambers, streamlining the treatment process without the need for device purging.

• Integrated Heating System: Offers adjustable water temperature settings to provide warm and comfortable treatments, catering to patients with sensitivity concerns.

Included Components

• 1 x Base Unit

• 1 x Piezon Handpiece with LED Light

• 1 x AIR-FLOW Handpiece

• 1 x PERIO-FLOW Handpiece

• 2 x Handpiece Cords

• 2 x Magnetic Handpiece Holders

• 1 x 350ml Water Bottle

• 1 x AIR-FLOW Powder Chamber

• 1 x PERIO-FLOW Powder Chamber

• 1 x Box of 40 PERIO-FLOW Slim Nozzles

• 1 x “4-Step” Foot Pedal

• 1 x AIR-FLOW Classic Powder Bottle

Technical Specifications

• Dimensions: 226 mm (H) x 370 mm (W) x 390 mm (D)

• Weight: Approximately 5 kg (11 lbs) for the control unit; foot pedal weighs about 0.35 kg (0.77 lbs)

• Power Supply: 100–240 V AC, 50–60 Hz, 4 A max

• Ultrasonic Module:

  • Frequency: 24–32 kHz

  • Max Output Power: 8 W under fully-loaded mechanical condition

  • Tip Vibration Excursion: Up to 200 µm

• Waterline Purge System: Integrated AIR-FLOW and PIEZON waterline purge system cleans fluid lines in under a minute, ensuring hygiene and maintenance efficiency.
