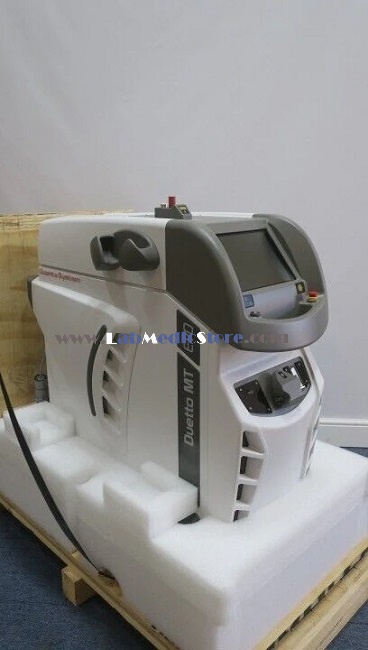

Quanta Duetto MT EVO Laser

The Quanta Duetto MT EVO is a state-of-the-art laser system designed for a broad spectrum of aesthetic and dermatological treatments. It uniquely combines Alexandrite (755 nm) and Nd:YAG (1064 nm) lasers using Quanta's proprietary Mixed Technology, allowing for single, sequential, or simultaneous wavelength emissions. This versatility enables customized treatments tailored to individual patient needs, enhancing both safety and efficacy.

Key Features

• Dual Wavelength Capability: Integrates Alexandrite 755 nm and Nd:YAG 1064 nm lasers, offering flexibility in treating various skin types and conditions.

• Quanta Mixed Technology®: Allows simultaneous or sequential emission of both wavelengths, optimizing treatment outcomes for hair removal, vascular lesions, and skin rejuvenation.

• Versatile Treatment Modes:

  • Simultaneous Emission: Ideal for hair removal, combining both wavelengths to target different chromophores effectively.

  • Sequential Emission: Beneficial for vascular treatments and skin rejuvenation, utilizing the distinct absorption characteristics of each wavelength.

• Adjustable Spot Sizes: Offers spot sizes ranging from 2 to 18 mm, accommodating various treatment areas and depths.

• Integrated Cooling Systems: Features an optional contact skin cooler and compatibility with external air cooling units to enhance patient comfort during procedures.

• Upgradable with TWAIN Accessories: Supports additional handpieces like the TWAIN 2940 nm Er:YAG laser for ablative treatments and TWAIN IPL for a range of dermatological applications.

Clinical Applications

• Hair Removal: Effective on all skin types, including tanned and darker skin tones, and capable of treating fine, light-colored hairs.

• Vascular Lesions: Treats facial and leg telangiectasia with precision, utilizing the sequential emission mode for optimal results.

• Skin Rejuvenation: Combines the pigment-targeting capabilities of Alexandrite with the collagen-stimulating effects of Nd:YAG for comprehensive skin rejuvenation.

• Pigmented Lesions: Addresses benign pigmented lesions effectively through tailored wavelength emissions.

• Scar Treatment: When equipped with the TWAIN 2940 handpiece, it can perform ablative treatments for traumatic and acne scars.

Technical Specifications

• Pulse Duration: Adjustable from 0.3 ms to 300 ms.

• Repetition Rate: Up to 10 Hz in single-wavelength mode; up to 5 Hz in mixed-wavelength mode.

• Fluence: Maximum fluence of 500 J/cm² for each wavelength, software-limited.

• Beam Delivery: Via optical fiber with detachable handpieces.

• Electrical Requirements: Operates on 200–240 Vac, 50/60 Hz, with a power consumption of 3.7 kVA.

• Dimensions & Weight: Measures 530 mm (W) x 1043 mm (D) x 1060 mm (H) and weighs 150 kg .

The Quanta Duetto MT EVO stands out as a versatile and advanced laser system, offering customizable treatments across a range of dermatological and aesthetic applications. Its integration of dual wavelengths and proprietary technology ensures effective results with enhanced patient safety and comfort.
