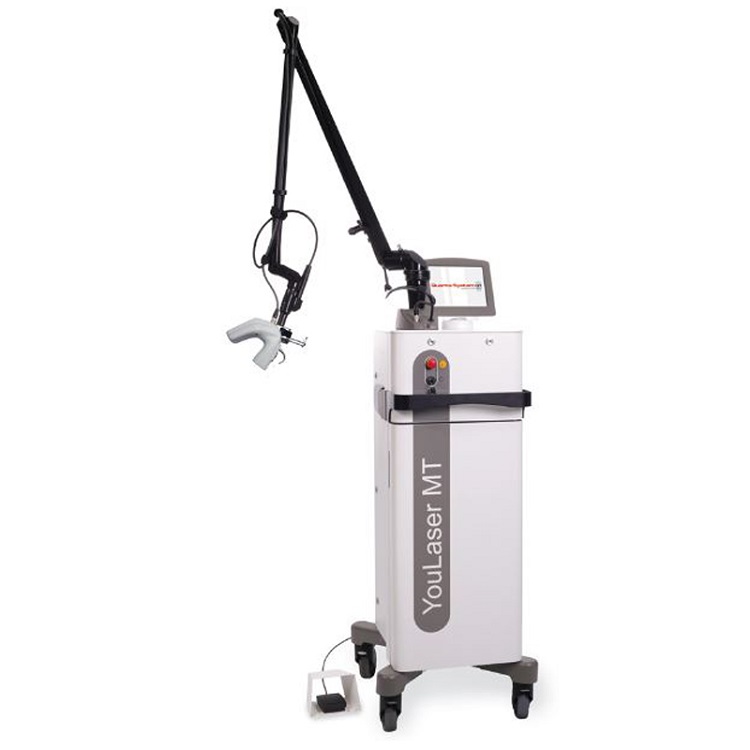

Quanta System YouLaser MT

The Quanta System YouLaser MT is an advanced dual-wavelength fractional laser system that combines the benefits of ablative and non-ablative treatments. Utilizing Quanta Mixed Technology, it delivers both 10,600 nm (CO₂) and 1,540 nm (GaAs) wavelengths either sequentially or simultaneously within the same micro-dot, allowing for customizable treatment protocols tailored to individual patient needs.

Key Features

• Quanta Mixed Technology: Enables the simultaneous or sequential emission of CO₂ and GaAs lasers, maximizing treatment efficacy while minimizing downtime.

• OptiScan with OptiSim: An advanced scanning system that allows complete tunability of treatment parameters. The OptiSim function estimates the depth and density of treatment, enhancing precision and safety.

• Surgical Handpieces: Designed for plastic and dermatological procedures, offering various spot dimensions to accommodate a wide range of treatments.

• Shelase Scanner: A specialized gynecological handpiece that delivers dual laser beams to stimulate collagen production in the mucosa, improving vaginal elasticity and related symptoms.

Applications

• Skin Rejuvenation: Addresses wrinkles, fine lines, and pigmentation issues, promoting a more youthful appearance.

• Scar and Acne Scar Treatment: Effectively reduces the appearance of scars, enhancing skin texture.

• Skin Laxity: Improves skin firmness and elasticity.

• Dermatological Surgery: Facilitates precise surgical procedures with minimal thermal damage.

• Vaginal Atrophy and Laxity: Non-invasive treatment option for improving vaginal health and function.

Technical Specifications

• Laser Sources: CO₂ (10,600 nm) and GaAs (1,540 nm)

• Power: Up to 30 W

• Pulse Modalities: Continuous Wave (CW) and pulsed modes for both lasers; simultaneous and sequential emissions

• Pulse Width: Up to 20 ms (fractional mode); up to 100 ms (surgical mode)

• Spot Sizes: Fractional: 300 µm (CO₂), 350 µm (GaAs); Surgical: 200 µm, 400 µm, 1,000 µm

• Scanning Area: Up to 1.8 x 1.8 cm

• Repetition Rate: Up to 2,000 Hz (surgical mode)

• Aiming Beam: 650 nm, <4 mW, Class 3R

• Dimensions: 580 mm (W) x 460 mm (D) x 1,330 mm (H)

• Weight: Approximately 55 kg

• Electrical Requirements: 115/230 VAC; 50/60 Hz; 1,000 VA

The Quanta System YouLaser MT stands out as a versatile and efficient solution for aesthetic and surgical applications, offering customizable treatments with minimal downtime. Its innovative technology and user-friendly features make it a valuable addition to modern medical practices.
