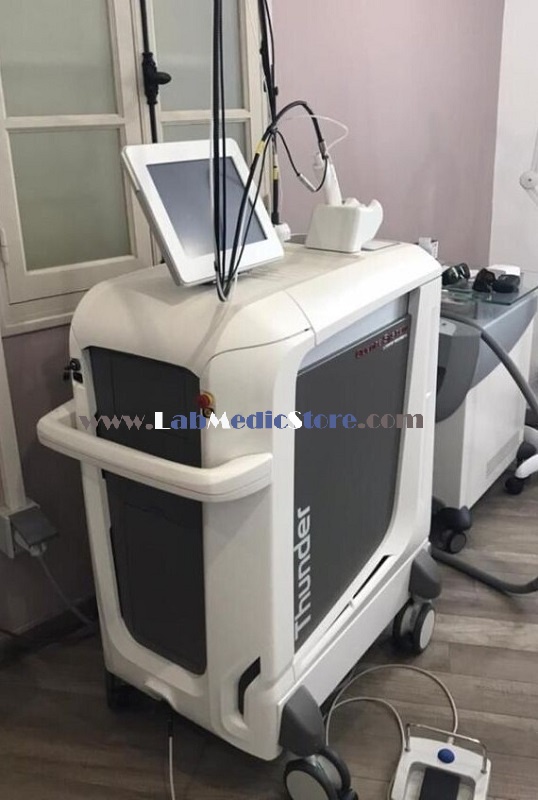

Quanta System Thunder MT

The Quanta System Thunder MT is a cutting-edge, dual-wavelength laser platform engineered for high-performance hair removal and a broad spectrum of aesthetic treatments. Combining Alexandrite (755 nm) and Nd:YAG (1064 nm) lasers, it offers unmatched versatility, speed, and safety across all skin types and hair colors.

Technologies

• Quanta Mixed Technology: This proprietary innovation allows the simultaneous or sequential emission of both wavelengths, enabling tailored treatments that maximize efficacy while minimizing discomfort and risks.

• Optimized Spot Shape: Utilizing super-elliptical beam profiles, the Thunder MT ensures uniform energy distribution, reducing overlap and the risk of burns, thereby enhancing treatment safety and effectiveness.

• OptiScan TH with AutoMotion: An advanced scanning handpiece that automates laser delivery over large areas, decreasing treatment times and improving patient comfort, especially beneficial for extensive procedures like full-body hair removal.

• Qool-Air Cooling System: An optional integrated skin cooling system that maintains patient comfort during high-fluence treatments, allowing for more aggressive protocols with reduced discomfort.

Applications

• Hair Removal: Effective across all skin types (I–VI) and hair colors, including challenging cases like fine, blonde, or red hair.

• Skin Rejuvenation: Stimulates collagen production, improving skin texture and tone, and reducing signs of aging.

• Vascular Lesions: Treats conditions such as spider veins and rosacea by targeting and coagulating blood vessels.

• Pigmented Lesions: Addresses sun spots, age spots, and freckles by breaking down excess pigment for a clearer complexion.

• Onychomycosis: Offers a non-invasive solution for nail fungus treatment.

Technical Specifications

• Wavelengths: 755 nm (Alexandrite) and 1064 nm (Nd:YAG)

• Pulse Duration: 0.3 ms to 300 ms for both wavelengths

• Fluence: Up to 500 J/cm² for each wavelength

• Repetition Rate:

  • Handpieces: Up to 10 Hz (single mode), up to 7 Hz (mixed mode)

  • Scanner: Up to 15 Hz (single mode), up to 10 Hz (mixed mode)

• Spot Sizes: Variable from 2 mm to 24 mm with handpieces; 9 mm with scanner

• Cooling System: Air cooling handpiece adaptor; optional Qool-Air system

• Dimensions: 652 mm (W) x 935 mm (D) x 1124 mm (H)

• Weight: Approximately 180 kg

• Electrical Requirements: 200-240 Vac; 50-60 Hz; 6 kVA
