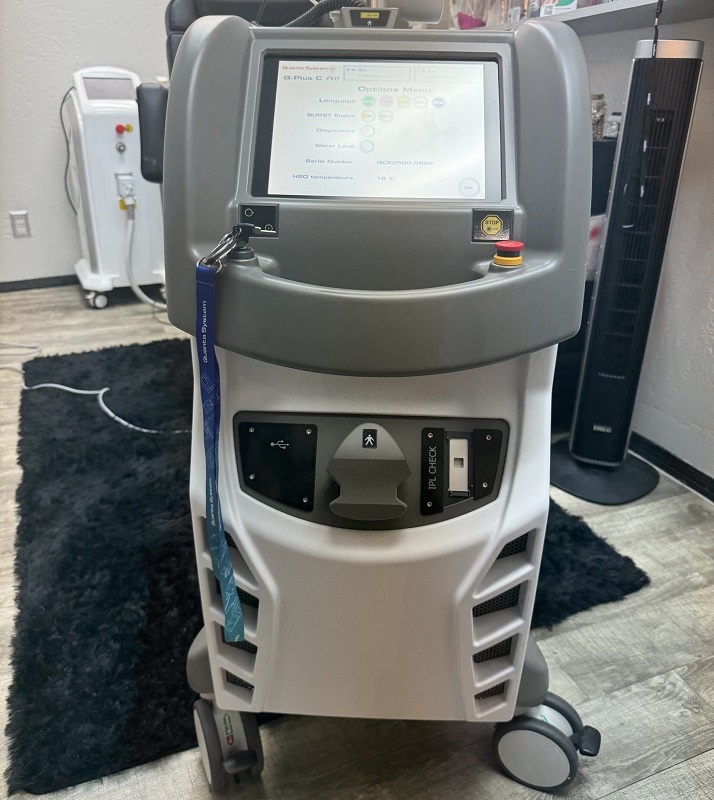

Quanta Q Plus C Evo Series

The Quanta Q-Plus C EVO Series is a state-of-the-art, multi-wavelength laser system designed for comprehensive aesthetic and dermatological treatments. Manufactured by Quanta System in Italy, this advanced platform integrates three laser wavelengths—1064 nm and 532 nm (Nd:YAG), and 694 nm (Ruby)—to effectively address a wide range of skin concerns with precision and efficacy.

Key Features

• Multi-Wavelength Capability: Combines Nd:YAG 1064 nm and 532 nm with Ruby 694 nm wavelengths, enabling versatile treatment options for various skin types and conditions.

• Advanced Pulse Control: Offers multiple emission modes, including Q-Switched, Opti-Pulse (double pulse), and Photo-Thermal, allowing customization for different treatments.

• High Fluence and Repetition Rates: Delivers maximum fluence up to 50 J/cm² and repetition rates up to 10 Hz, ensuring efficient and effective treatments.

• Versatile Handpieces: Equipped with multiple detachable handpieces featuring variable and fixed spot sizes (2–9 mm), including options for square, round, and fractional spots.

• OptiBeam II Technology: Provides homogenous high-peak power to optimize efficacy, safety, and healing time. The OptiBeam II handpieces can generate different flat-top spot shapes at various sizes.

• Upgradeable with TWAIN Accessories: Supports additional handpieces like the TWAIN IPL and TWAIN 2940 nm Er:YAG laser for expanded treatment options, including skin resurfacing and hair removal.

Clinical Applications

• Tattoo Removal: Effectively removes tattoos of various colors, including challenging hues like green and light blue, using the combination of 1064 nm, 532 nm, and 694 nm wavelengths.

• Pigmented Lesions: Addresses benign pigmented lesions such as lentigines and nevi with precision.

• Vascular Lesions: Treats facial and leg telangiectasia, hemangiomas, and other vascular conditions using appropriate wavelengths.

• Skin Rejuvenation: Improves skin texture, tone, and overall appearance through targeted treatments.

• Acne and Scarring: Utilizes specific wavelengths and handpieces for treating inflammatory acne and acne scars.

• Hair Removal: Provides permanent hair reduction solutions suitable for various skin types.

Technical Specifications

• Pulse Duration:

  • 1064 nm: 6 ns (Q-Switch), 6 ns + 6 ns (Opti-Pulse), 300 µs (Photo-Thermal)

  • 532 nm: 6 ns (Q-Switch), 6 ns + 6 ns (Opti-Pulse)

  • 694 nm: 30 ns (Q-Switch), 2 ms (Photo-Thermal)

• Repetition Rate:

  • 1064 nm & 532 nm: Up to 10 Hz

  • 694 nm: Up to 3 Hz

• Max Fluence:

  • 1064 nm: 25 J/cm² (Q-Switch), 37.5 J/cm² (Opti-Pulse), 50 J/cm² (Photo-Thermal)

  • 532 nm: 12.5 J/cm² (Q-Switch), 15 J/cm² (Opti-Pulse)

  • 694 nm: 30 J/cm² (Q-Switch), 50 J/cm² (Photo-Thermal)

• Beam Delivery: Articulated arm with detachable handpieces.

• Available Spot Sizes: Square 2x2, 3x3, 4x4, 5x5 mm; Round 3, 4.5, 6, 7.5, 9 mm; Fractional Round 8 mm.

• Electrical Requirements: 3.7 kVA, 200-240 Vac; 50/60 Hz.

• Dimensions & Weight: 530 mm (W) x 1043 mm (D) x 1060 mm (H); 150 kg.

The Quanta Q-Plus C EVO Series stands out as a comprehensive and adaptable laser system, offering customizable treatments across a range of dermatological and aesthetic applications. Its integration of multiple wavelengths and proprietary technology ensures effective results with enhanced patient safety and comfort.
