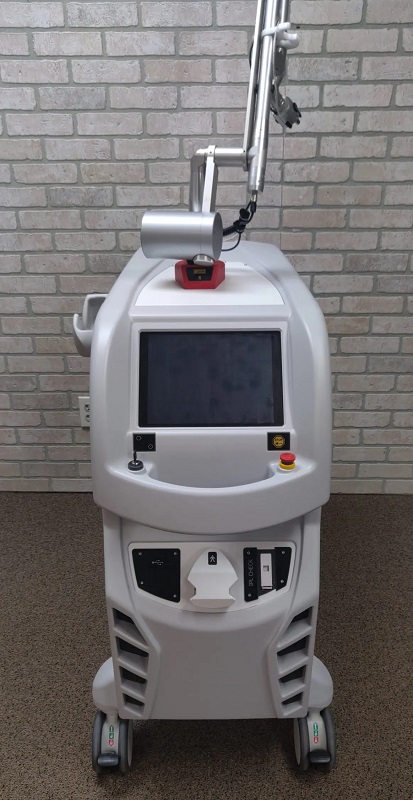

Quanta Systems Discovery Pico Plus

The Quanta System Discovery Pico Plus is a second-generation picosecond laser system designed for advanced aesthetic and dermatological treatments. It combines three true laser wavelengths—532 nm (KTP), 694 nm (Ruby), and 1064 nm (Nd:YAG)—with four emission modes: Picosecond, Nanosecond, OptiPulse, and Photo-Thermal. This configuration allows for versatile treatments across various skin types and conditions.

Key Features

• PicoBoost Technology: Delivers peak power up to 1.8 GW, enabling effective fragmentation of pigments and inks with minimal thermal damage.

• VarioPulse Technology: Offers adjustable pulse durations, allowing customization for different treatments, from pigment removal to skin rejuvenation.

• OptiBeam II Handpieces: Provides various spot shapes and sizes, including square, round, and fractional, ensuring uniform energy distribution and treatment precision.

• Fractional Microlens Array: Enhances collagen stimulation and skin renewal by creating laser-induced optical breakdown (LIOB), leading to improved skin texture and reduced scarring.

Applications

• Tattoo Removal: Effectively targets multicolored tattoos, including challenging hues like green and blue, by utilizing the combined wavelengths.

• Pigmented Lesions: Treats conditions such as melasma, sun spots, and freckles with high precision and reduced risk of post-inflammatory hyperpigmentation.

• Skin Rejuvenation: Improves skin texture, reduces wrinkles, and treats acne scars through fractional treatments that stimulate collagen production.

• Acne Treatment: Utilizes quasi-long pulsed emission modes to target acne-causing bacteria and reduce inflammation.

Technical Specifications

• Wavelengths: 532 nm, 694 nm, 1064 nm

• Pulse Durations:

  • Picosecond: 370–450 ps

  • Nanosecond: 6 ns

  • OptiPulse: 6 ns + 6 ns

  • Photo-Thermal: 300 µs – 2 ms

• Maximum Energy Output:

  • 1064 nm: 800 mJ (Picosecond), 1200 mJ (OptiPulse)

  • 532 nm: 300 mJ (Picosecond), 450 mJ (OptiPulse)

  • 694 nm: 1200 mJ (Q-Switched)

• Repetition Rate: Up to 10 Hz (1064 nm), up to 3 Hz (694 nm)

• Spot Sizes: 3 mm to 10.5 mm (round), 2×2 mm to 7×7 mm (square), 8 mm and 9 mm (fractional)

• Dimensions: 530 mm (W) x 1034 mm (D) x 1060 mm (H)

• Weight: Approximately 150 kg (330.69 lbs)

• Electrical Requirements: 200–240 VAC, 50/60 Hz, 3.7 KVA

The Quanta System Discovery Pico Plus stands out for its high peak power, versatile treatment options, and advanced technology, making it a valuable asset for clinics aiming to offer comprehensive aesthetic solutions.
