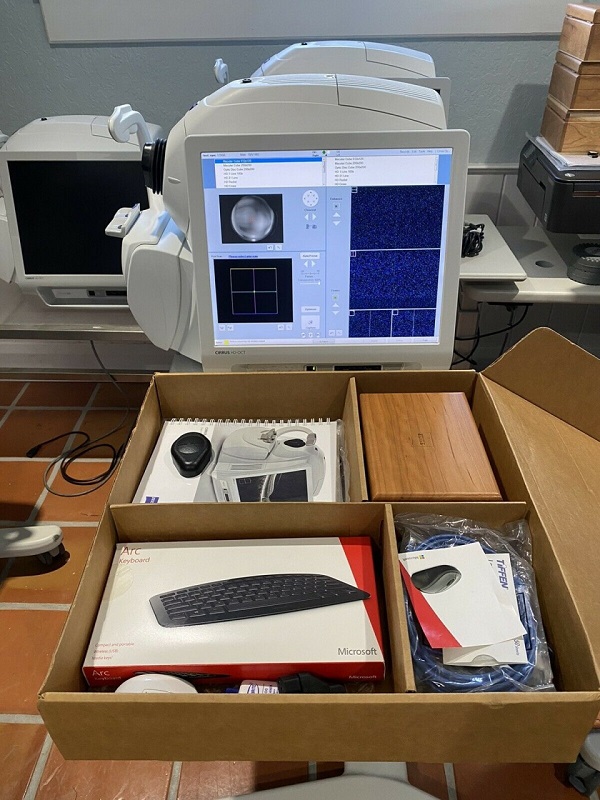

Carl Zeiss Cirrus HD-OCT 5000

The Carl Zeiss Cirrus HD-OCT 5000 is a high-performance optical coherence tomography (OCT) system designed for detailed retinal imaging, glaucoma analysis, and anterior segment visualization. Equipped with fast scan speeds, high-resolution imaging, and advanced diagnostic tools, it is an ideal solution for ophthalmologists and eye care professionals seeking precision in retinal disease detection and management.

Key Features & Benefits:

✅ High-Speed Imaging – Features 68,000 A-scans per second for ultra-fast and detailed retinal scans
✅ Widefield & High-Definition Scanning – Captures detailed cross-sectional and en face images
✅ Advanced Glaucoma & Retina Analysis – Provides comprehensive assessment of retinal nerve fiber layer (RNFL), ganglion cell complex (GCC), and macular thickness
✅ AngioPlex® OCT Angiography (Optional) – Offers non-invasive vascular imaging for better disease evaluation
✅ Anterior Segment Imaging – Enables corneal and angle assessment
✅ Guided Progression Analysis (GPA™) – Tracks disease progression for long-term patient monitoring
✅ Integrated Review Software – Enhances clinical workflow and patient management

Technical Specifications:

• Scan Speed: 68,000 A-scans per second

• Axial Resolution: 5 μm (in tissue)

• Transverse Resolution: 15 μm (typical)

• Scan Range: 2 to 12 mm

• OCT Angiography (Optional): AngioPlex® for vascular assessment

• Anterior Segment Imaging: Yes

• Software Integration: Compatible with Zeiss FORUM® and EMR systems

Applications:

???? Retinal Disease Diagnosis – Detects AMD, diabetic retinopathy, macular edema, and more
???? Glaucoma Management – Monitors RNFL, GCC, and optic nerve head changes
???? OCT Angiography – Evaluates retinal and choroidal vasculature
???? Anterior Segment Imaging – Assesses corneal thickness and angle structures

Why Choose Carl Zeiss Cirrus HD-OCT 5000?

With high-speed scanning, precise imaging, and advanced diagnostic capabilities, the Cirrus HD-OCT 5000 provides superior accuracy for early disease detection and monitoring. It is a trusted choice for ophthalmologists worldwide, ensuring better patient outcomes and streamlined clinical workflow.
