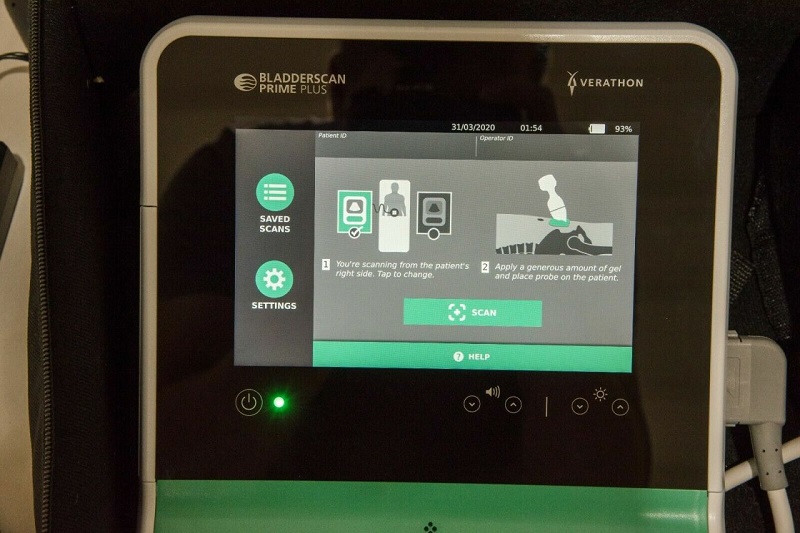

Verathon Prime Plus BladderScan Portable

The Verathon Prime Plus BladderScan is a portable, non-invasive ultrasound bladder scanner designed for fast and accurate bladder volume measurement. Utilizing cutting-edge 3D ultrasound technology, it delivers precise, real-time imaging and automatic volume calculations, reducing the need for unnecessary catheterization and minimizing infection risks. The device is ideal for urology, emergency medicine, post-operative care, rehabilitation, and long-term patient monitoring.

Key Features & Benefits:

✅ Fast & Precise Bladder Volume Measurement – Provides accurate assessments within seconds, improving clinical efficiency and patient comfort.

✅ Advanced 3D Ultrasound Imaging – Ensures high-resolution real-time bladder scans with automatic boundary detection for precise volume calculations.

✅ Portable & Ergonomic Design – Lightweight and easy to carry, making it ideal for bedside use, emergency rooms, and mobile healthcare services.

✅ User-Friendly Interface – Features a high-resolution touchscreen LCD display, ensuring easy operation and instant visualization of scan results.

✅ Multiple Measurement Modes – Supports adult and pediatric scanning, providing versatility for different patient needs.

✅ Automatic & Manual Measurement Options – Provides automated bladder volume calculations while allowing manual adjustments for enhanced accuracy.

✅ Long-Lasting Battery Life – Rechargeable lithium-ion battery ensures extended operation for continuous patient monitoring.

✅ Data Storage & Connectivity – Built-in memory for storing patient scan history, with USB and optional Wi-Fi connectivity for data transfer and reporting.

✅ Versatile Clinical Applications – Ideal for use in:

• Urology & nephrology clinics
• Emergency & critical care units
• Post-surgical recovery monitoring
• Rehabilitation & long-term care facilities
• Home healthcare settings

Specifications

General Specifications:

• Model: Verathon Prime Plus BladderScan
• Type: Portable, non-invasive ultrasound bladder scanner
• Application: Urology, emergency medicine, rehabilitation, post-operative care, and long-term patient monitoring
• Display: High-resolution touchscreen LCD
• Operation: Automatic and manual bladder volume measurement

Ultrasound & Imaging:

• Ultrasound Frequency: 2.5 – 3.7 MHz
• Scanning Method: 3D ultrasound scanning technology
• Bladder Volume Measurement Range: 0 – 999 mL
• Measurement Accuracy: ±7.5% or ±10 mL
• Real-Time Imaging: Yes, with automatic bladder boundary detection

User Interface & Controls:

• Touchscreen Display Size: Typically 7” LCD
• Measurement Modes: Adult and Pediatric
• Data Storage: Built-in memory for patient scan records
• Connectivity: USB, Wi-Fi (optional)

Power & Battery:

• Battery Type: Rechargeable Lithium-ion battery
• Battery Life: Up to 4-6 hours of continuous use
• Charging Time: Approximately 2-3 hours
• Power Supply: 100 – 240V AC, 50/60Hz

Design & Mobility:

• Dimensions: Compact and portable for bedside use
• Weight: Approx. 1.5 – 3 kg (varies by model)
• Mounting Options: Handheld or cart-mounted for flexibility

Safety & Compliance:

• Certifications: CE, FDA-approved, ISO 13485 (Medical Device Standard)
• Operating Temperature: 10°C – 40°C (50°F – 104°F)
• Storage Temperature: -10°C – 50°C (14°F – 122°F)

Included Accessories:

• Ultrasound Probe
• Rechargeable Battery & Power Adapter
• Carrying Case
• Ultrasound Gel
• User Manual & Quick Start Guide

The Verathon Prime Plus BladderScan is a highly accurate, portable, and user-friendly bladder scanner, designed to improve clinical efficiency, reduce catheterization risks, and enhance patient care.
