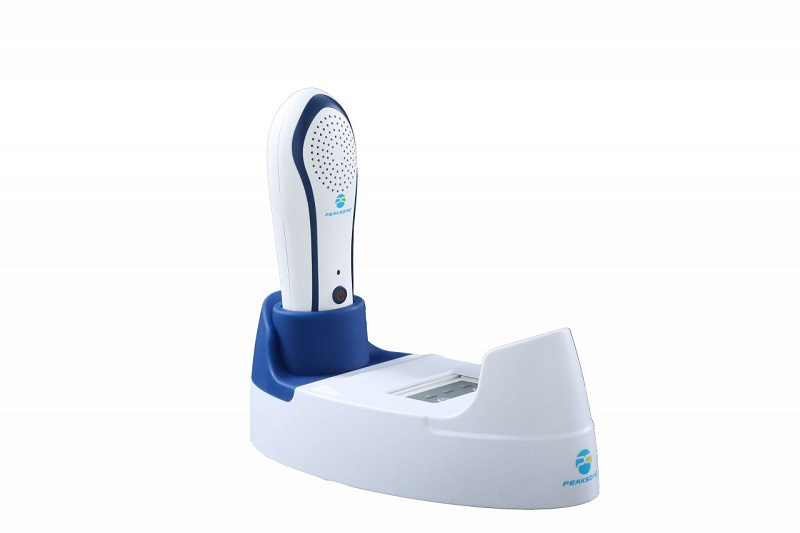

MDPro M4 3D Scan Bladder Scanner

The MDPro M4 3D Scan Bladder Scanner is a high-precision, non-invasive ultrasound device designed for quick and accurate bladder volume measurement in medical settings. With its advanced 3D ultrasound technology, the M4 provides real-time imaging, automatic bladder volume calculations, and a user-friendly touchscreen interface, making it an essential tool for urology, emergency medicine, post-operative care, rehabilitation, and long-term patient monitoring.

Key Features & Benefits:

✅ Fast & Accurate Bladder Volume Measurement – Delivers precise assessments within seconds, minimizing unnecessary catheterization and reducing the risk of urinary tract infections.

✅ Advanced 3D Ultrasound Imaging – Features real-time bladder detection for enhanced diagnostic accuracy and patient assessment.

✅ Intuitive Touchscreen Display – Equipped with a high-resolution touchscreen LCD, allowing for easy navigation and real-time viewing of scan results.

✅ Portable & Ergonomic Design – Lightweight and compact, making it ideal for bedside and mobile healthcare use.

✅ Multiple Scan Modes – Offers adult and pediatric measurement options, ensuring versatility for different patient needs.

✅ Automatic & Manual Measurement Functions – Provides automated bladder volume calculations while also allowing manual adjustments for improved accuracy.

✅ Rechargeable Battery for Continuous Use – Long-lasting lithium-ion battery enables extended operation during medical procedures.

✅ Data Storage & Connectivity – Built-in memory allows for patient record storage, and USB/Wi-Fi connectivity (model-dependent) supports data transfer and report generation.

✅ Wide Range of Applications – Suitable for use in:

• Urology & nephrology clinics
• Emergency & critical care departments
• Post-surgical recovery monitoring
• Rehabilitation & long-term care facilities
• Home healthcare settings

Specifications

General Specifications:

• Model: MDPro M4
• Type: Non-invasive ultrasound bladder scanner
• Application: Urology, emergency medicine, rehabilitation, post-operative care, and long-term patient monitoring
• Display: High-resolution touchscreen LCD
• Operation: Automatic and manual bladder volume measurement

Ultrasound & Imaging:

• Ultrasound Frequency: 2.5 – 3.7 MHz
• Scanning Method: 3D ultrasound scanning
• Bladder Volume Measurement Range: 10 – 999 mL
• Measurement Accuracy: ±10% or ±10 mL
• Real-Time Imaging: Yes, with automatic bladder boundary detection

User Interface & Controls:

• Touchscreen Display Size: Typically 7” LCD
• Measurement Modes: Adult and Pediatric
• Data Storage: Built-in memory for patient records and scan history
• Connectivity: USB, Wi-Fi (model-dependent)

Power & Battery:

• Battery Type: Rechargeable Lithium-ion battery
• Battery Life: Up to 4-6 hours of continuous use
• Charging Time: Approximately 2-3 hours
• Power Supply: 100 – 240V AC, 50/60Hz

Design & Mobility:

• Dimensions: Compact and portable (exact size varies by model)
• Weight: Approx. 1.5 – 3 kg (varies by model)
• Mounting Options: Handheld or cart-mounted for flexibility

Safety & Compliance:

• Certifications: CE, FDA-approved, ISO 13485 (Medical Device Standard)
• Operating Temperature: 10°C – 40°C (50°F – 104°F)
• Storage Temperature: -10°C – 50°C (14°F – 122°F)

Included Accessories:

• Ultrasound Probe
• Rechargeable Battery & Power Adapter
• Carrying Case
• Ultrasound Gel
• User Manual & Quick Start Guide
