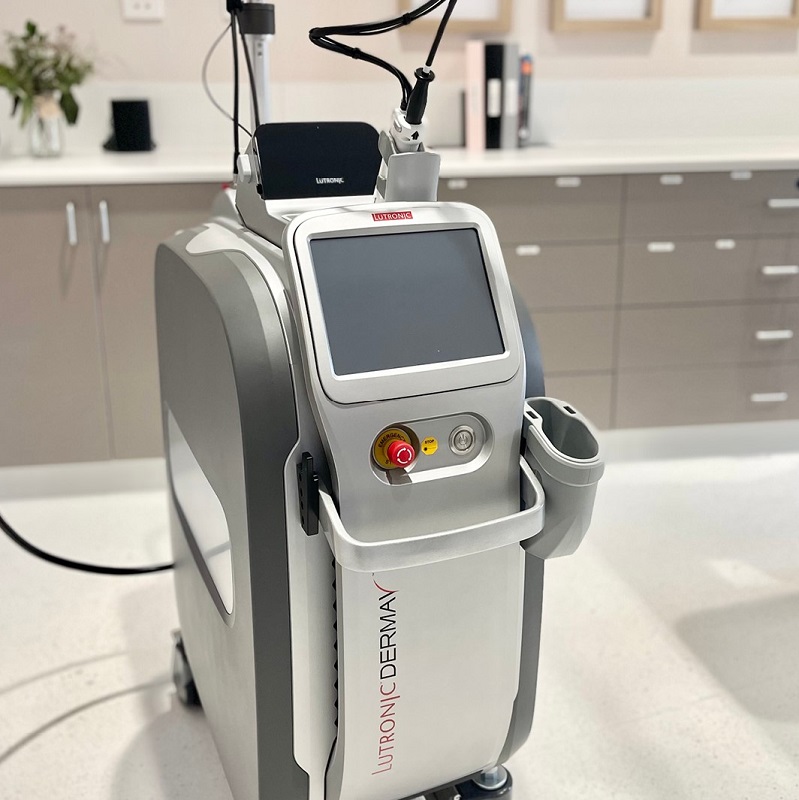

Lutronic Derma V

The Lutronic DermaV is an advanced dermatological laser platform designed to treat a wide range of vascular and pigmented skin conditions with precision, safety, and efficiency. It combines dual wavelengths—532nm (KTP) and 1064nm (Nd:YAG)—with innovative technologies to deliver superior clinical outcomes and enhanced patient comfort.

Key Features & Technologies

• Dual Wavelengths (532nm & 1064nm): The 532nm wavelength effectively targets superficial vascular lesions and pigmented areas, while the 1064nm wavelength penetrates deeper to address conditions like port wine stains and deeper vascular lesions.

• Variable Sequential Pulsing (VSP): This patented technology allows for customizable pulse durations and structures, enabling tailored treatments for various skin conditions. It's the first 532nm device to offer Integrated Cooling Device (ICD) cooling combined with user-specified VSP, making traditional pulsed dye and solid-state green lasers obsolete.

• IntelliTrak Technology: Ensures consistent energy delivery by providing real-time feedback on handpiece movement, allowing for uniform coverage and faster treatment times.

• Advanced Cooling System: Features adjustable cooling before, during, and after treatment phases, safeguarding the skin and enhancing patient comfort. The ICD cooling system offers superior epidermal protection and reduces side effects.

• Real-Time Temperature Sensing: Provides immediate feedback on skin temperature, helping practitioners determine safe and effective treatment endpoints.

Clinical Applications

The DermaV is versatile and effective in treating a variety of skin conditions, including:

• Vascular Lesions: Such as rosacea, spider veins, port wine stains, and telangiectasia.

• Pigmented Lesions: Including melasma, age spots, freckles, and other forms of hyperpigmentation.

• Skin Rejuvenation: Stimulates collagen and elastin production, improving skin texture, firmness, and overall radiance.

• Acne and Surgical Scarring: Reduces the appearance of scars by remodeling damaged skin tissue.

• Hair Removal: Offers efficient and long-lasting hair reduction suitable for all skin types.

Technical Specifications

• Wavelengths: 532nm (KTP) and 1064nm (Nd:YAG)

• Pulse Energy: Up to 13.5 J for 532nm and up to 100 J for 1064nm

• Pulse Width: Up to 40 ms for 532nm and up to 60 ms for 1064nm

• Pulse Rate: 0.5–10 Hz

• Cooling System: Cryogen-based ICD and air cooling

• Spot Sizes: Multiple options ranging from 2 mm to 16 mm, including fractional (FRX) sizes

• Dimensions & Weight: Approximately 417.6 mm (W) x 950.3 mm (L) x 1007.5 mm (H); 115 kg
