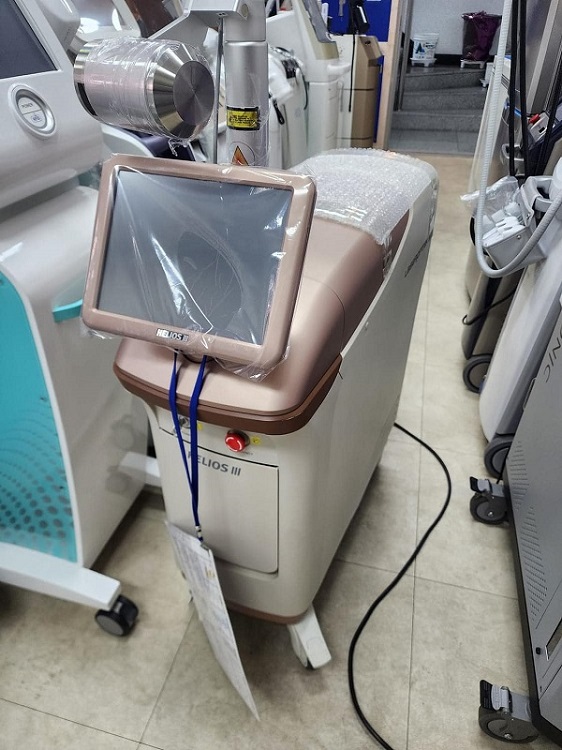

Laseroptek Helios III Laser

The Laseroptek Helios III is an advanced Q-switched Nd:YAG laser system designed for a wide range of dermatological and aesthetic treatments. Building upon the success of its predecessors, the Helios III integrates cutting-edge technologies to deliver precise, effective, and safe treatments for various skin concerns.​

Key Features

• Dual Wavelengths (1064nm & 532nm): The Helios III operates with two primary wavelengths: 1064 nm and 532 nm. The 1064 nm wavelength targets deeper dermal layers, making it effective for treating conditions like melasma and nevus of Ota, while the 532 nm wavelength is ideal for addressing superficial pigmentation such as freckles and solar lentigines.

• Advanced 4G Toning Technology: Utilizing four modes—black, blue, red, and green—across both wavelengths, the Helios III enhances treatment efficacy by targeting pigments at various depths. This approach reduces treatment time and improves outcomes.

• Fractional Handpiece: The inclusion of a fractional handpiece allows for targeted treatment of epidermal lesions, minimizing the risk of hyperpigmentation and ensuring effective removal of superficial pigmentation.

• Real Twin Pulse (RTP) Technology: RTP technology delivers two identical pulses in quick succession, enhancing treatment efficacy while minimizing discomfort for the patient.

• User-Friendly Interface: Equipped with a 10.4-inch TFT LCD touch screen, the Helios III offers an intuitive interface for clinicians, streamlining treatment planning and execution.

Clinical Applications

• Tattoo Removal: Effectively targets and breaks down tattoo pigments, including challenging colors like green and blue.​

• Pigmentation Treatment: Addresses various pigmentation issues such as melasma, freckles, and age spots.​

• Skin Rejuvenation: Promotes collagen production, improving skin texture and tone.​

• Carbon Peel (Hollywood Peel): Utilizes a carbon lotion to deeply cleanse and rejuvenate the skin.​

• Nevus of Ota: Targets and reduces the appearance of this specific pigmentation disorder.​

Technical Specifications

• Pulse Energy:

  • 1064 nm: Up to 1.3 J

  • 532 nm: Up to 0.5 J

  • Fractional 1064 nm: Up to 3 J

  • RTP 1064 nm: Up to 2 J

  • RTP 532 nm: Up to 0.6 J​

• Repetition Rate: 1–10 Hz​

• Spot Sizes:

  • Zoom Handpiece: Ø1–7 mm

  • Fractional 1064 Handpiece: 5x5 mm

  • Collimator Handpiece: Ø8 mm​

• Cooling System: Closed-cycle water-to-air heat exchanger​

• Electrical Power: 220V, 50/60Hz​
